KEXINT MTP (MPO) Female APC To MDC 16 Fiber Breakout Single Mode (9/125) Fiber Optic Patch Cord

Product Categories
SHENZHEN KXIND COMMUNICATIONS CO.,LTD
Contact Now

KEXINT MTP (MPO) Female APC To MDC 16 Fiber Breakout Single Mode (9/125) Fiber Optic Patch Cord

Brand Name : KEXINT

Model Number : 16 MPO-MDC Single Mode

Certification : CE/ROHS/ISO9001

Place of Origin : CHINA

MOQ : 100+ pcs

Price : dollars+43.21+pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000+pcs+day

Delivery Time : 8

Packaging Details : carton

Fibre Type : 16 Core Single Mode (9/125)

Cable Diameter : Main 3 mm; tails 2 mm round duplex

MPO Connector : MTP ELITE 16 fibre

End 2 Connector : MDC low loss grade B ferrule duplex

Insertion Loss : Less than 45 dB across cable

Breakout Unit : Metal with crimp (not heat-shink)

Tail Configuration : Custom: 0.30 m to 2 m

Cable Jacket : LSZH

Operating Temperature : -10~60°C

Storage Temperature : -20~70°C

Contact Now

KEXINT MTP (MPO) Female APC To MDC 16 Fiber Breakout Single Mode (9/125) Fiber Optic Patch Cord
US Conec's ELiMENT® MDC connector is a Very Small Form Factor (VSFF) duplex optical connector and is manufactured using 1.25mm ceramic ferrule technology. Push-pull boot can easily be inserted and removed from high density cabling without special tooling. It is designed for high-density fiber patching in 100/400/800G data centers which need space saving and reduce cable management troubles.
Its reverse-polarity design allows for quick and easy polarity conversion without exposing the fibers or needing any tools. SFP-DD, OSFP and QSFP-DD transceivers can be directly connected by these patch cords.
MDC trunk multimode cable assemblies faciliate rapid deployment of high density backbone cabling in data centers and other high fiber environment , reducing network installation or reconfiguration time and cost , they are used to interconnect cassettes,plane or fan outs , It offered in fiber types in standard 8/12/24/48 cores version using a compact and rugged micro cables structure.
KEXINT MTP (MPO) Female APC To MDC 16 Fiber Breakout Single Mode (9/125) Fiber Optic Patch Cord

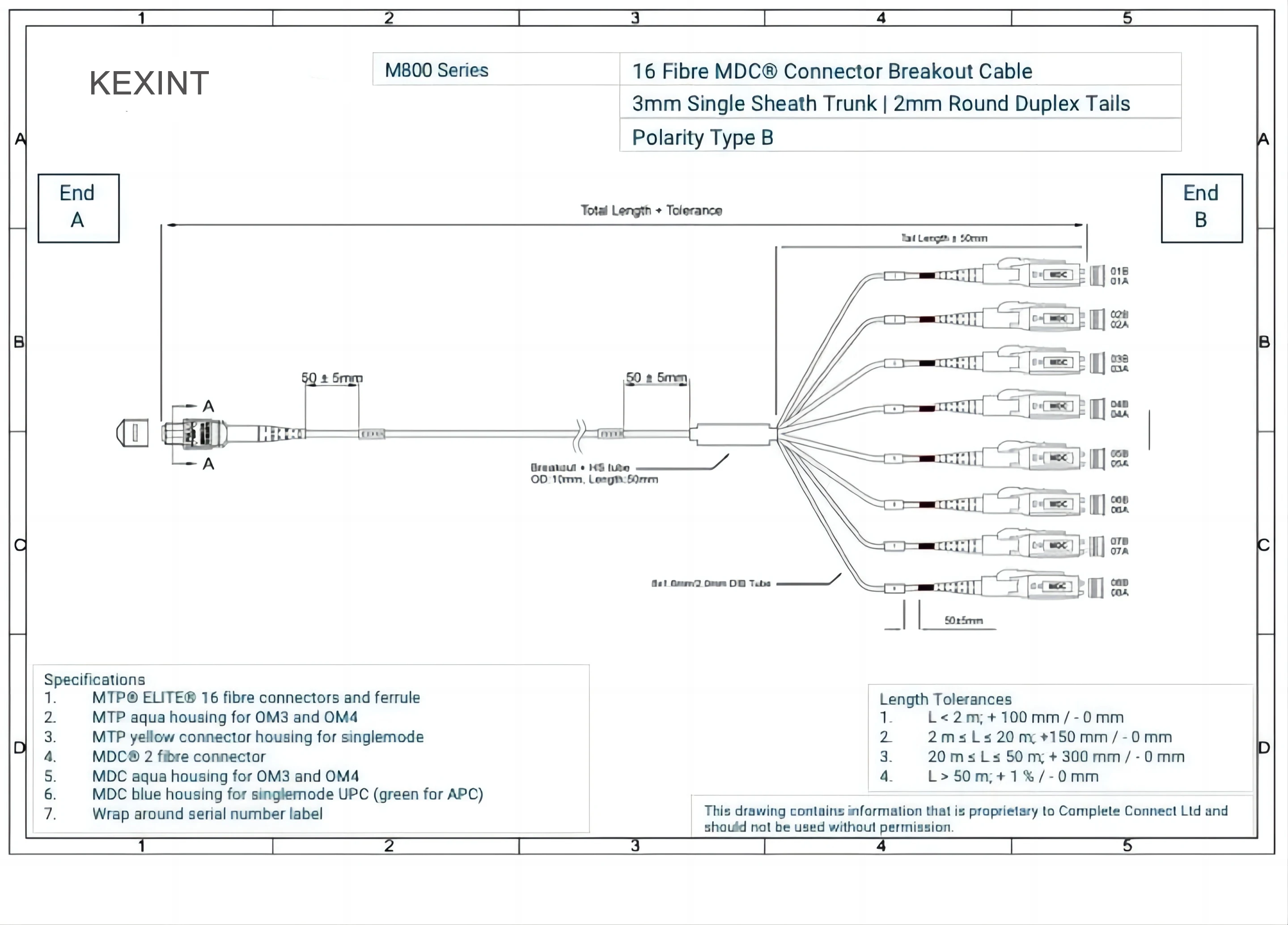

MTP to MDC® breakout cables are available across KEXINT’s MPO Series: M400 8 fibre (4 x MDC connectors), M310 12 fibre (6 x MDC connectors), M800 16 fibre (4 x MDC connectors), M1000 24 fibre (12 x MDC connectors) and M2400 48 fibre (24 x MDC connectors) versions.
The MTP to MDC breakout cable here is an 8 fibre cable with a polarity that enables one QSFP-DD, QSFP28 or QSFP+ transceiver to be connected to MDC patch panels or cassettes.
All QSFP type transceivers have ports with a male connection. These require an MTP (MPO) breakout cable with a female MTP (MPO) connector.
To ensure optimal performance, all MPO-MDC Series products including our MTP to MDC breakout cables use an MTP connector with an MT ELITE ferrule and high grade low loss 1.25 ferrules within the MDC connector.
Application: 1.Data communication network; 2.Optical system access network; 3.Storage area network fiber channel; 4.High density architectures. Features: 1. There are two 1.25mm ferrules in one connector housing 2. Push-pull sheath for inserting and unplugging connectors 3. Easily perform polarity conversion without exposed optical fiber: 4. Comply with IEC61753-1 Class B insertion loss requirements 5. Comply with Telcordia GR-326 and TIA-568 standards; 6. Designed for cables with an outer diameter of less than 2.0mm 7. Provide MM, SM and SM APC 8. Optical fiber wiring density is 3 times that of LC Application Environment:

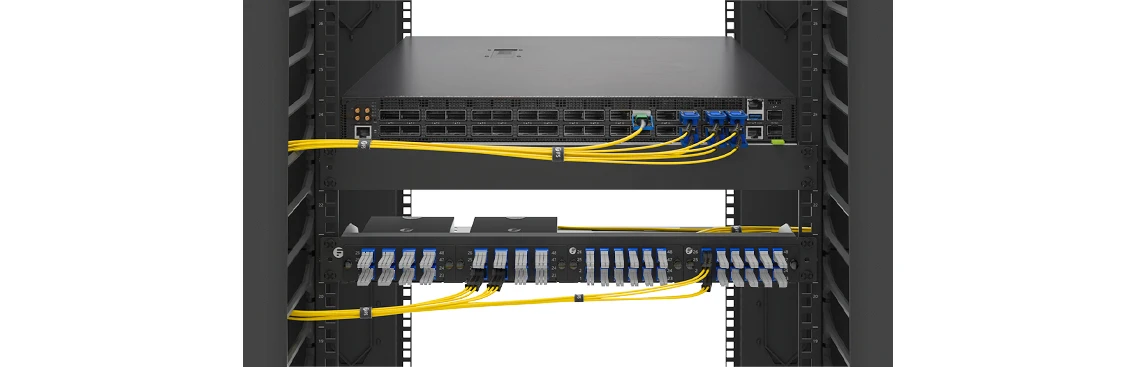

Several emerging transceiver multi-vendor protocols (MSAs) have defined port fan-out (breakout branching architecture). For duplex optical connectors to have smaller package sizes than LC connectors, the reduction in MDC connector size will allow A single transceiver accommodates MDC jumpers that plug directly into the transceiver interface. The new transceiver packaging format will support four pairs of MIDC connector cables in an OSFP package optical module or an SFE package optical module. Supports two pairs of MDC connectors. The connector density on the module panel is increased, minimizing hardware size, investment and operating costs. One rack unit RU can accommodate 144 fibers with LC duplex connectors and adapters. Use more The small MDC connector can increase the number of fiber cores to 432 cores in the same 1RU space.
KEXINT MTP (MPO) Female APC To MDC 16 Fiber Breakout Single Mode (9/125) Fiber Optic Patch Cord
Basic data:
Polarity
SR8 to SR (x8)
Fibre Type
16 Core Single Mode (9/125)
Glass Cores
Corning Clearcurve®
Cable Diameter
Main 3 mm; tails 2 mm round duplex
Tail Configuration
Custom: 0.30 m to 2 m
MPO Connector
MTP ELITE® 16 fibre
End 2 Connector
MDC® low loss grade B ferrule duplex
Insertion Loss
Less than 45 dB across cable
Breakout Unit
Metal with crimp (not heat-shink)
Product Warranty
25 years
Options:
1. Cable Type
Dual sheath 4.5mm
Made to order
2. MPO Gender
Male (with pins) or female (without pins)
Made to order
3. MDC® Tails
Straight or staggered
Made to order
4. Polarity
MDC connectors are field reverisble – B and A
Made to order
