Metallic Joint Box for Fiber Optic Cable Closure Hight Quality FOSC OPGW

Name: Metallic Joint Box for Fiber Optic Cable Closure Hight Quality FOSC OPGW
Brand: KEXINT
Price: 39.56 USD

Quality Metallic Joint Box for Fiber Optic Cable Closure Hight Quality FOSC OPGW for sale

Brand Name : KEXINT

Model Number : Metallic Joint Box for Fiber Optic Cable

Certification : ISO-9001 2015

Place of Origin : CHINA SHENZHEN

MOQ : 10

Price : $+39.56+pcs

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500+PCS+Per week

Delivery Time : 7

Packaging Details : Carton pack

Name : Metallic Joint Box for Fiber Optic Cable

Application : Telecom CATV Network FTTX

Insertion Loss : =< 0.2db

Returen loss : 60db

Material : plastic +ceramics

Operating Temperature : -40+80

Contact Now

Metallic Joint Box for Fiber Optic Cable Closure Hight Quality FOSC OPGW

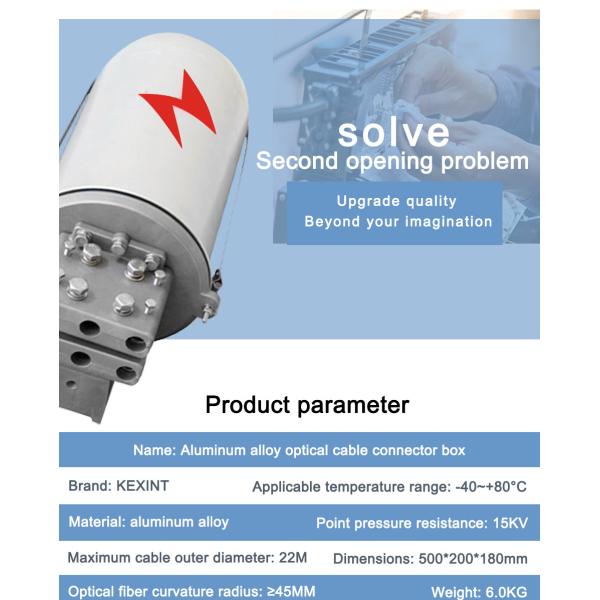

The optical fiber enclosure (joint box) is mainly used for the connection between two sections of power optical cables, and a small section is reserved for maintenance. Our fiber optic sealer has good sealing performance, waterproof and moisture-proof, including sealer and junction box, materials: plastic and metal.

STRUCTURE

1.With excellent environmental applicability, reliability and waterproof, fully meet the requirements of the life of the optical communication system.

2.Easy to operate, optical fiber splicing loss is not affected by the stress, optical fiber.

3.Connector box in the optical fiber fixed on the tower and the connector box and strong. It can be installed on the tower, the concrete pole.

4. The splice, reinforced by hot-melting & hot cable are accommodated in laminated way. Metallic Joint Box for Fiber Optic Cable

Echnical

Environment temperature	-40℃ ~ +60℃
Atmospheric pressure	70KPa-106KPa
Normal temperature sealing	Internal pressure 70KPa, keep for 72 hours, the pressure won’t fall.
Cycle	Room temperature: 20°C,high-low temperature:-40°C~+60°C,at least for four hours, cycle one time per 12 hours, when internal pressure 60KPa±5KPa carries out 10 times, the drop amplitude of pressure is not over 5KPa.
High temperature sealing	Internal pressure 70KPa, keeping for 168 hours under 60°C, the
Strength	Tensile force is not less than 2000N; the box body’s pressure resistance is not less than 3000N.
Bending force of cable and joint box	150N (±45°)
Twisting force of cable and joint box	50N M ·M (+90°C

Specification

Radius of optical cable	≥47mm
Added loss of optical cable wheel	≤0.01Db
Applicable temperature scope	-40~+80℃
Physical dimensions (mm)	470(H) x 200(Φ)
Length of the wheeled optical cable	≥1.5m
Max.capacity of optical cable	≤144 piece
Anti side pressure	≥2000N
Weight	6.5kg

Metallic Joint Box for Fiber Optic Cable Closure Hight Quality FOSC OPGW
